Intelligent brushless DC motor driver

Lbda048d10 intelligent brushless motor driver has small volume and full functions. It is controlled by single chip microcomputer and has various control modes such as start stop, brake, forward and reverse rotation, AVI speed regulation, PWM speed regulation, 485 communication and various speed output modes. In addition, this series of drivers have a variety of fault-tolerant protection modes, such as current limiting, overvoltage, undervoltage, temperature protection, sensor error inspection, winding phase loss detection and so on. Multiple parameter setting functions, users can use handheld programmer to configure parameters according to motor and application requirements.
imgAdvisory Message imgContact us
Tel：0579-86622113 Mail：001@linix.com.cn
Retail price
0.0
元
Market price
0.0
元
Number of views:
1000
Product serial number
LBDA048D10
Category
Electric control products
Quantity
-
+
Stock:
0
1
产品描述
Parameters

Product features:
Working voltage: 24VDC
Speed regulation input: 0 ~ 5VDC or programmer setting or communication port setting
Speed output: 50% square wave signal proportional to speed
Control mode: closed loop control
Modulation mode: square wave
Protection mode: locked rotor protection, overcurrent protection, hall protection, etc
performance parameter

model Input voltage range Maximum motor Matching motor
LBDA048D10 15V～48V 10A It is suitable for DC brushless motors with 15V ~ 48V input voltage and working current below 10A
LNXT-122 — — Handheld programmer (option)

应用行业
该系列控制器广泛应用与纺织机械、泵体、密集柜、离心机设备等领域。

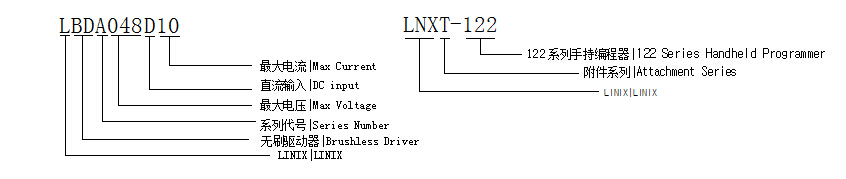

命名规则

1

We could not find any corresponding parameters, please add them to the properties table
