Main Performance Parameters and Characteristics

Protection Level: IP54, all-aluminum die-cast housing with waterproof seal protection.
32-bit high-performance CPU, capable of timely and effective management of controller operation and providing protection functions.
Advanced current and voltage calibration methods for more accurate control and protection.
Programming Function: Users can configure more than 70 parameters, configurable via a handheld programmer to meet different customer needs.
Downhill Speed Limit and Anti-rollback Function: When going downhill, the vehicle does not exceed the maximum allowable speed; speed is limited when stationary on an incline.
High Pedal Detection Function: When the controller is powered on, it enters a protection state when the accelerator input exceeds the accelerator dead zone; prevents sudden vehicle movement due to accelerator malfunction or misoperation.
Overvoltage Protection Function: When the bus voltage is too high, vehicle movement is prohibited to protect the motor and controller.
Undervoltage Deceleration Function: When the battery pack voltage is below the set value, the controller enters a protection state, the drive current and maximum speed are halved, and an alarm is triggered and the output is cut off after 3 minutes.
Temperature Protection Function: Overtemperature Protection: When the radiator temperature exceeds the set value, the controller enters a protection state and issues an alarm (current halved at 75℃, output cut off at 85℃).
Current Limiting Function: Current limiting function is available in both driving and regenerative braking states.
Emergency Stop Function: Allows the vehicle to quickly enter a stop state in an emergency.
Emergency Reverse Function: In the running state, connecting the emergency reverse switch allows the vehicle to quickly enter reverse.
Cruise Control Function: In the running state, connecting the cruise control switch puts the vehicle into cruise control mode.
Diagnostic Function: The vehicle's operating status can be observed via LED status lights or a handheld programmer.
Supports 2 Operating Modes: Operating modes can be switched via a mode switch for convenient operation in different situations.
Push Function: Closing the push switch releases the electromagnetic brake for easy pushing.
Electromagnetic Brake Detection Function: Detects short circuits or open circuits in the electromagnetic brake to ensure braking effectiveness.
Reverse Beeper Function: A low-current buzzer can be driven during reverse operation.
Load Compensation Function: Ensures smooth driving on slopes or when crossing obstacles.
Voltage Compensation Function: Eliminates differences in maximum driving speed due to different battery voltages.

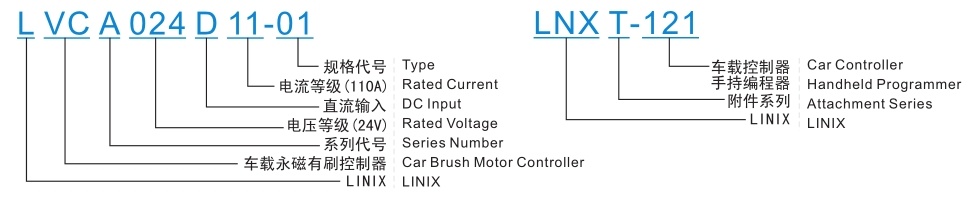

Model Naming

Model	Rated Voltage V(DC)	Rated Current (A)	Matching Motor	Remarks
LVCA012D11-01	12	110	< 12V /300W
LVCA024D11-01	24	110	< 24V /550W
LVCA036D11-01	36	110	< 36V /800W
LVCA012D07-01	12	70	< 12V /180W
LVCA024D07-01	24	70	< 24V /350W
LVCA036D07-01	36	70	< 36V /500W
LVCA012D05-01	12	45	< 12V /100W
LVCA024D05-01	24	45	< 24V /200W
LVCA036D05-01	36	45	< 36V /300W
LVCA012D11-02	12	110	< 12V /300W	With Emergency Reverse or Cruise Control

Low-voltage servo driver

None

: Next

mobility scooter controller

The LVCA024D05-01 vehicle-mounted controller is a high-performance permanent magnet brushed motor controller. It can smoothly and quietly control the motor speed and torque, and provides a variety of safety protection functions. It is an ideal choice for various electric vehicles, electric sweepers, electric tricycles, electric recreational vehicles, and electric handling vehicles.
